Quick Start

Installation

using Pkg
Pkg.add("WhatsThePoint")

3D Example: Surface Mesh to Solver-Ready Point Cloud

using WhatsThePoint
using Unitful: mm, °

# 1. Import a surface mesh — the unit says what the file's raw numbers mean
mesh = import_mesh("model.stl", mm)
boundary = PointBoundary(mesh)

# 2. Split into named surfaces by normal angle
split_surface!(boundary, 75°)

# 3. Generate volume points
spacing = ConstantSpacing(1mm)
cloud = discretize(boundary, spacing; alg=Orthtree(mesh))

# 4. Optimize point distribution (optional — Bridson placement is already blue-noise)
cloud = repel(cloud, spacing)

# 5. Build neighbor connectivity
cloud = set_topology(cloud, KNNTopology, 21)

# 6. Ready for your meshless solver
neighbors(cloud, 1)  # neighbor indices for point 1

# 7. Export for ParaView (Representation → Point Gaussian)
export_vtk("cloud", cloud)

Not sure what spacing to use?

Run suggest_spacing("model.stl", mm) first — it probes the geometry and recommends a baseline spacing (plus the coarsest spacing the domain can host before the interior comes out empty).

2D Example: Polygon to Point Cloud

using WhatsThePoint
using Unitful: m

# 1. Define a 2D boundary — a starfish domain r(θ) = 1 + 0.2 sin(5θ)
θ = range(0, 2π; length=200)[1:(end - 1)]
r = @. 1 + 0.2 * sin(5θ)
boundary = PointBoundary(Point.(r .* cos.(θ), r .* sin.(θ)))

# 2. Discretize — 2D defaults to the Orthtree (quadtree) Poisson-disk fill
spacing = ConstantSpacing(0.05m)
cloud = discretize(boundary, spacing)

# 3. Optimize and connect
cloud = repel(cloud, spacing)
cloud = set_topology(cloud, KNNTopology, 9)

Any closed, ordered polygon works — the starfish is a standard test domain in the RBF-FD literature this package grew out of. The same Orthtree algorithm handles graded (non-constant) spacing in 2D; pass it explicitly to configure it — see the Orthtree Algorithm page:

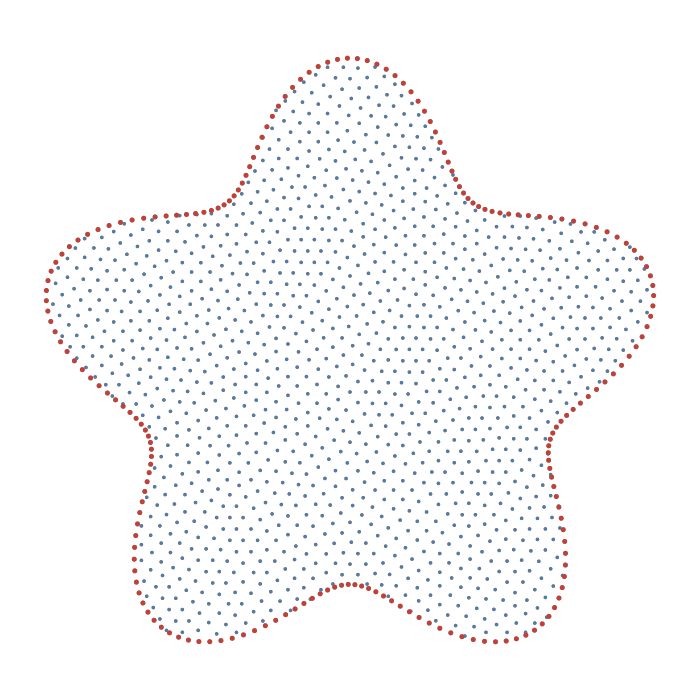

Boundary points in red, generated interior points in blue.

Visualization

using GLMakie

visualize(cloud; markersize=0.15)

Next Steps

• Guide — Full workflow walkthrough with explanations

• Concepts — Type hierarchy, design decisions, and units

• Discretization — Algorithm details and spacing options

• API Reference — Complete function reference
